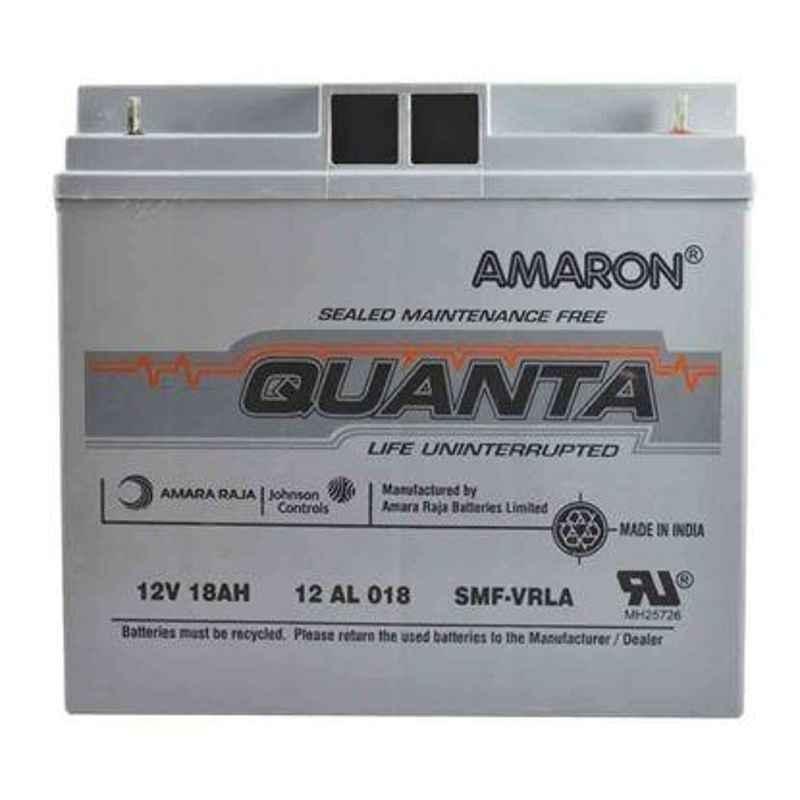

Amaron Quanta 12AL018 12V 18Ah SMF VRLA Battery
GST Invoice Available
The Amaron Quanta 12AL018 12V 18Ah SMF VRLA Battery is designed to deliver reliable backup power for UPS systems and compatible standby power applications. Featuring sealed maintenance-free VRLA technology, this battery offers dependable performance, low self-discharge and minimal routine maintenance. It is suitable for commercial and industrial equipment requiring a compact 12V backup power solution.
₹ 2,750.00 + 18% GST
Description
The Amaron Quanta 12AL018 12V 18Ah SMF VRLA Battery is engineered to provide dependable backup power for uninterruptible power supply (UPS) systems and other compatible electrical equipment. Manufactured by Amara Raja, the Amaron Quanta range uses sealed valve-regulated lead-acid technology designed for reliable standby operation.
With a nominal voltage of 12V and a rated capacity of 18Ah at the 20-hour discharge rate, this battery is suitable for applications that require a compact and efficient backup power source. Its sealed construction helps minimise routine maintenance, while its robust design supports reliable operation in compatible commercial and industrial environments.
The battery features a compact form factor measuring approximately 181 × 77 × 167 mm, with M5 bolted terminals for secure electrical connections. Its low self-discharge characteristics make it suitable for standby applications where the battery remains charged and ready for use during power interruptions.
The Amaron Quanta 12AL018 battery can be used in compatible UPS installations, IT infrastructure, telecommunications equipment, security systems and industrial control applications. For optimal performance and service life, the battery should be installed with a compatible charging system and operated according to the manufacturer’s recommendations.
3. Technical Specifications
| Specification | Details |
|---|---|
| Brand | Amaron Quanta |
| Model Number | 12AL018 |
| Nominal Voltage | 12V |
| Rated Capacity | 18Ah at C20 rate |
| Battery Type | SMF VRLA |
| Technology | Valve-Regulated Lead-Acid |
| Length | 181 mm |
| Width | 77 mm |
| Total Height | 167 mm |
| Weight | Approx. 5.52 kg |
| Terminal Type | M5 bolted |
| Case Material | ABS |
| Internal Resistance | Approx. 14 mΩ |
| Maximum Discharge Current | 270A for 5 seconds |
| Standby Charging Voltage | 13.5V to 13.8V at 27°C |
| Cyclic Charging Voltage | 14.4V to 14.7V at 27°C |
| Self-Discharge | Less than 4% per month at 27°C |
| Primary Application | UPS and standby power systems |
4. Key Features and Benefits
-
Maintenance-free design: Sealed VRLA construction minimises routine maintenance requirements.
-
Reliable backup power: Designed for compatible UPS and standby power systems.
-
18Ah rated capacity: Suitable for equipment requiring a 12V, 18Ah battery.
-
Low self-discharge: Helps retain stored charge during standby periods.
-
Secure terminal connections: M5 bolted terminals support reliable electrical connections.
-
Compact construction: Designed for compatible battery compartments and installations.
-
Versatile applications: Suitable for supported IT, telecommunications, security and industrial equipment.
5. Applications
The Amaron Quanta 12AL018 battery is suitable for compatible applications such as:
-
Uninterruptible Power Supply (UPS) systems
-
Computer and networking equipment
-
Telecommunications backup systems
-
Security alarms and surveillance systems
-
Emergency lighting equipment
-
Industrial control systems
-
Commercial and institutional backup power installations
